Help File For  Classic Status 4 Plus V4

This Free Program Comes With ' No Support '  Other than this Help File........ What  You See Is What You Get  !!!!

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON INFRINGEMENT.
IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

See Full License For complete info

Warning !!!  Use This Program At Your Own Risk !!!

Writing a Incorrect Value or a Value in the Wrong Format :
        Could DESTROY YOUR Classic   or OUTBACK or DESTROY YOUR BATTERIES !!!   Or Worse Cause A FIRE
The user agrees to defend, indemnify and hold harmless Copyright holders of this Software from any
and all damages, claims, suits or expense resulting from use of this.

This Program is NOT A Product of Midnite Solar or Outback Power Or Schneider Electric.
Nor do they support "This Program" in any way !


You Must Have At Least One Midnite Classic Charge Controller To Use This Program.


    There are no "Device Control" Or "Advanced Settings" For the XW And SW At this time.


Help Topics

Classic Status 4 Plus V4

  Program is designed, to monitor and control basic functions of

up to Five Classic Charge Controllers
One Conext XW Inverter Conected with a Conext  ComBox
And Or One Conext SW Inverter Conected with a Conext  ComBox
And One Outback AXS with A FX Or GS Inverter.

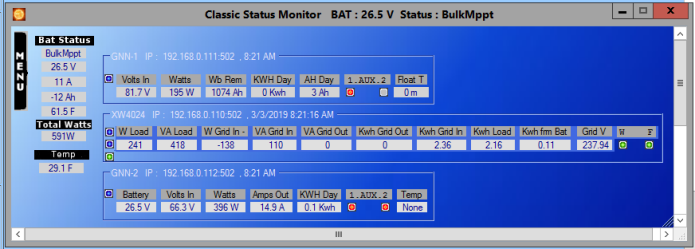

Images/hMC1Xw.png

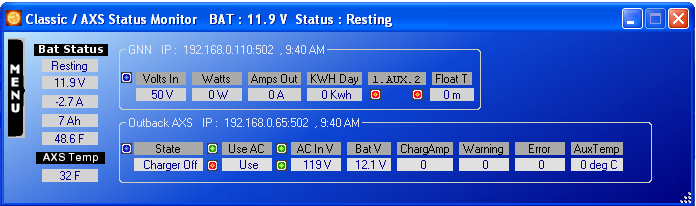

Images/hMC1Ob.png
Menu   Images/hMenu.png
Help Menu   Images/hMenu2.png

Basic Settings : Is where you set  IP & Port for each Device

And where you select which field to Show.


Device Control : Contains

Classics functions For Manual control AUX 1 & 2 and Clear Logs.

Also

Contains Only Fx Inverter: Manual Charge, Use AC, and Fx On/Off Controls.

And

AUTO Controls For Backup Systems with Solar,when using Fx Inverter,


FX Auto Charge With min & Max volts & Timer

 And

FX Auto AC (Use or Lose) (Run Inverter with extra Solar when battery's are full )Use AC or NOT. with Volts ,On Volts Off & Timer



Advanced Settings : Contains

A Tabbed Spread Sheet View of Common Registers of  both the Classic  and AXS Some Registers are Writeable, For Changing Set Values in the Devices. Ip and port settings are Separate from the main Program, meaning you can connect to any Classic Charge Controller or Outback AXS(With Any AXS compatible Device Connected) Anywhere any time.

Note : You Can Not Access The Conext ComBox Or Outback AXS Data Until you Have Successfully Connected To a Classic Charge Controller At Least Once with This Program.
